Lightweight & High-Performance
DataLake eBike Mid Drive Systems
Experience the cutting-edge technology of DataLake’s mid-drive motors. Designed for efficiency, power, and integration, our motors elevate your eBike performance across all terrains.
DataLake
eBike Mid-Drives
Mid Drives that unleash
Superior Performance
DataLake is offering a wide range of standard Mid-Drive Motors delivering superior performance for your eBike System. We can also create custom drive system solutions tailored to your needs.
Mid Drive Systems
Product Details

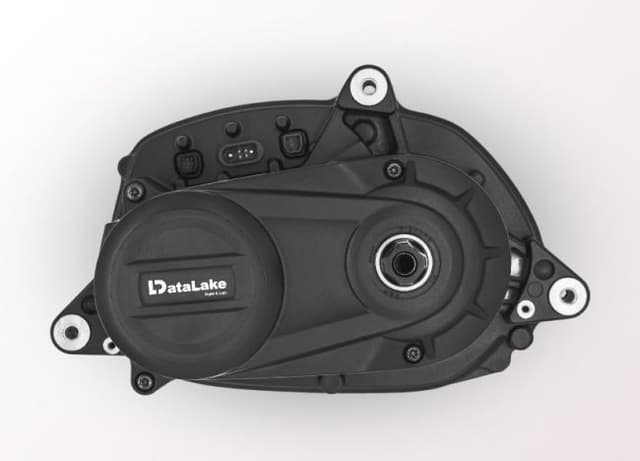

M-Drive 2 Series
The M-Drive 2 is a compact and efficient mid-drive motor system designed for smooth urban mobility. Running at 36V with 250W rated output, it delivers up to 80Nm of torque—ideal for daily commuting and lightweight e-bikes. With CAN bus support, 12V light output, and integrated e-brake/throttle, the M-Drive 2 offers a balanced ride with just 2.8 kg of weight.
Core Specifications
250W
Motor Power
80 Nm
Torque
IPX5
IP Rating
ca. 2.8 kg
Weight
Cost-effective Performance Beast
The M-Drive 2 excels in eCity, eTrekking, and eTrail applications. Its high torque output of 80 Nm makes it perfect for urban commuting, long-distance trekking, and challenging trails. This motor provides high efficiency by leveraging the bike’s gears, ensuring optimal power delivery and smooth acceleration.
Centrally located, it enhances stability and control, providing a balanced ride with a low center of gravity. Additionally, its design maximizes battery life, allowing for longer rides, and offers simplified maintenance with easy wheel removal.

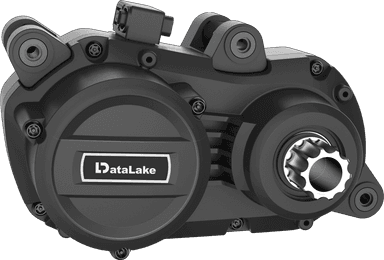

M-Drive 4 Series
The M-Drive 4 is a lightweight mid-drive unit built for daily rides and compact e-bikes. Operating at 36V and 200W, it provides up to 60Nm of torque while weighing just 2 kg. Its compact design integrates easily with most bike frames and supports CAN bus, 12V/6W lighting, and standard ISIS crank interfaces.
Core Specifications
200W
Motor Power
60 Nm
Torque
IPX5
IP Rating
ca. 2 kg
Weight
Lightweight & Advanced Design
The M-Drive 4 is ideal for eGravel, eRoad, and eCity bikes. Its compact, lightweight design, combined with a 60 Nm torque output, makes it suitable for both high-end mountain bikes and regular commuters. This motor ensures reliable performance and smooth integration into the bike frame, maintaining a sleek appearance.
It offers consistent power across various conditions, making it versatile for different riding styles. Additionally, its high torque output provides strong, responsive power, enhancing the overall riding experience.

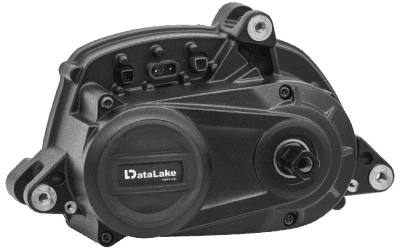

M-Drive 6 Series
The M-Drive 6 blends power and compactness for riders seeking responsive pedal assist. With 250W rated power and 90Nm of torque, this 36V mid-drive motor suits trekking and commuter bikes alike. It features a 2.3 kg build, CAN bus connectivity, and full support for throttle and e-brakes.
Core Specifications
250W
Motor Power
90 Nm
Torque
IPX5
IP Rating
ca. 2.3 kg
Weight

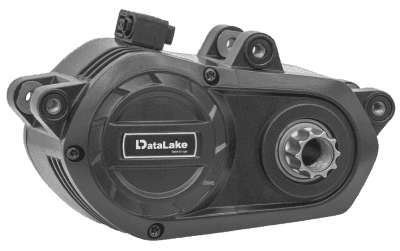

M-Drive 8+ Series
The M-Drive 8+ is built for powerful riding and transport-focused applications. Running on a 48V system with 750W power and 120Nm of torque, it offers strong climbing ability and load capacity. Its design includes JIS mounting, CAN bus communication, 12V lighting support, and IPX5 waterproof protection.
Core Specifications
750W
Motor Power
120 Nm
Torque
IPX5
IP Rating
ca. 3.5 Kg
Weight

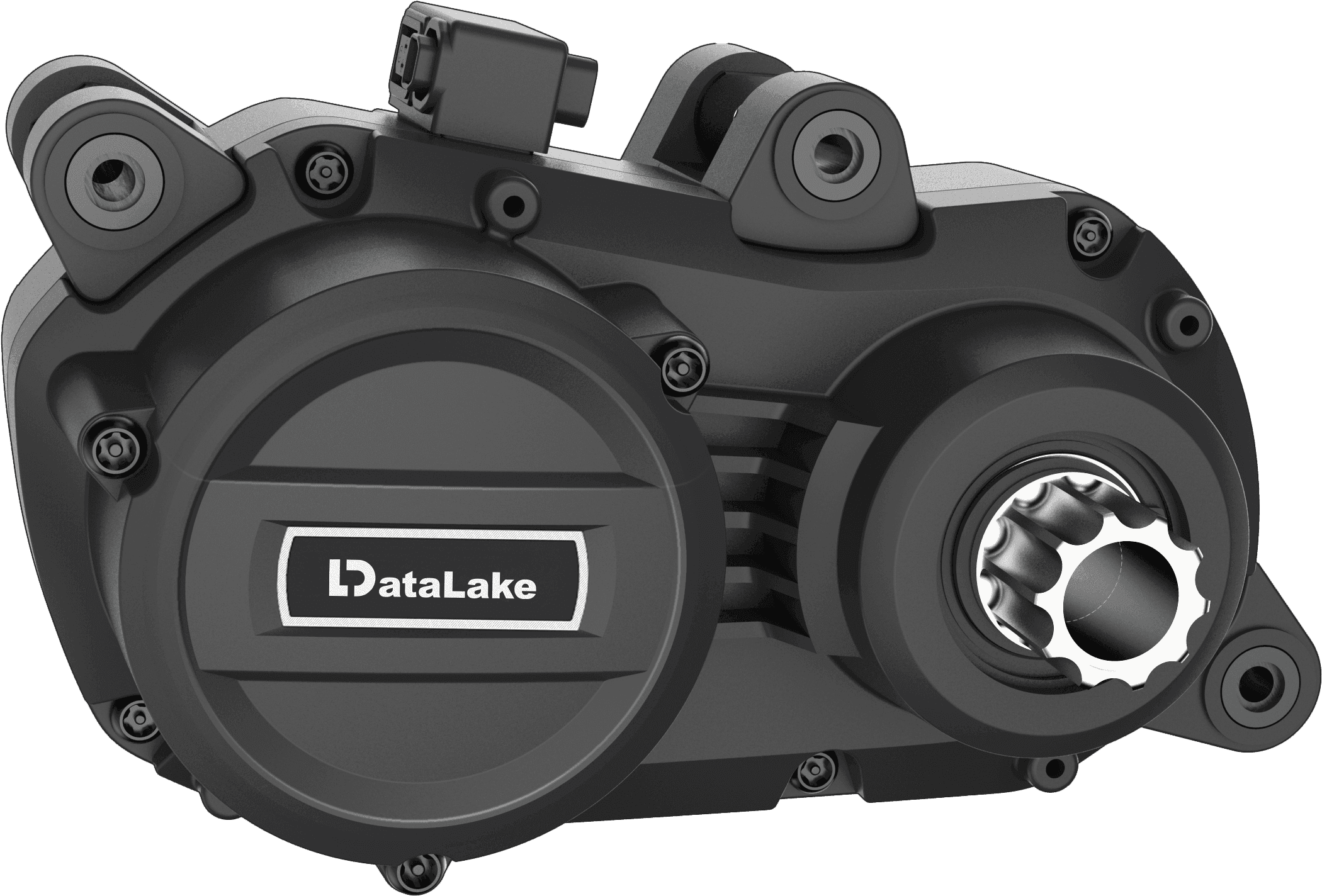

M-Drive 10 Series
The M-Drive 10 delivers 350W of power and 100Nm torque for riders needing strong mid-drive performance. Compact yet powerful, it operates on a 36V system and integrates key features like CAN bus protocol, 12V HMI output, throttle, and e-brake support, making it ideal for performance-oriented e-bikes.If you're looking for a more powerful rated output, we also offer a 48V with 500W version as an option.
Core Specifications
350/500W
Motor Power
100 Nm
Torque
IPX5
IP Rating
ca. 3.4 kg
Weight
Mid-Drive Motor Comparison Tool
Main Specifications at a Glance
